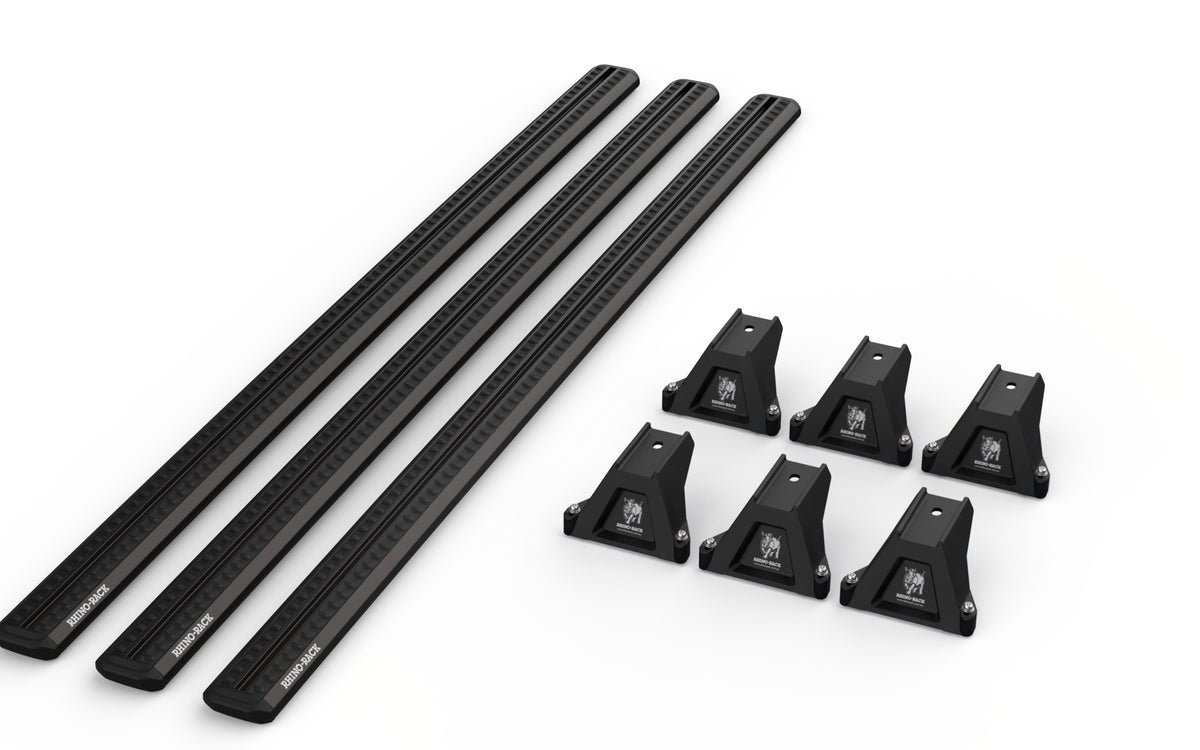

Rhino-Rack kit contents — SZ150Bx3 + RLTPMV04

1 / 1

Roof Rack Bundle

For

MERCEDES BENZ

Vito

Part No: JC-05151

KVID No:

KV282020

VEHICLES THAT FIT THIS KIT

Vehicle ID MERCEDES BENZ Vito · Gen 2 · 2004-2015 · Van · 2 Door · LWB · Low Roof · Track · VEH03812

ADD TO CART

FIT MY VEHICLE

Product Locator by Locally

Product Details

Overview

Designed specifically to fit Rhino-Rack Vortex bars.
Provides one bar with a 10mm increase in height.

Specifications and features are subject to change without notice. Please confirm fitment for your vehicle before purchase.

Overview

Legs — Vortex Leg Height Spacers

Dimensions190 × 100 × 50 mm / 7.48 × 3.94 × 1.97 in (L×W×H)

Weight0.14 kg

Total system weight0.14 kg

All dimensions and weights are approximate and subject to change without notice.

Instructions and Downloads

📄 Installation guides

Vortex Leg Height Spacers instructionsPDF
Vortex Bar RL Fit Kit instructionsPDF

Refer to the printed fitting instructions supplied with the product for torque values and vehicle-specific details.

Enter your specified vehicle roof load rating as stated in your vehicle's owner's manual

Selected vehicle MERCEDES BENZ Vito · Gen 2 · 2004-2015 · Van · 2 Door · LWB · Low Roof · Track · VEH03812

Vehicle / System Load Limit

Roof Rack System Weight (excludes accessories)

Roof Rack Cargo Capacity (On‑Road)

Off‑Road Load Rating

On‑Road: sealed / paved roads.

Off‑Road: unsealed / dirt roads.

Cargo Capacity: the max weight you can safely add to the roof rack systemz.

System Weight: total weight of the Rhino‑Rack kit (excludes accessories & cargo).

Static load: what a stationary vehicle can hold (e.g. for a rooftop tent) — usually higher than the on‑road rating and listed in your vehicle's logbook; not shown here.

These figures are an aid for estimating system weight and cargo capacity only — not a substitute for the instructions and specifications for your vehicle. They exclude fittings, accessories and items carried in holders. Observe maximum travelling speed, check load restraints, and never exceed your vehicle's GVM and axle limits. Always follow the lowest rating across the vehicle, mounting system and roof rack. Contact your authorised Rhino‑Rack dealer with any questions.
